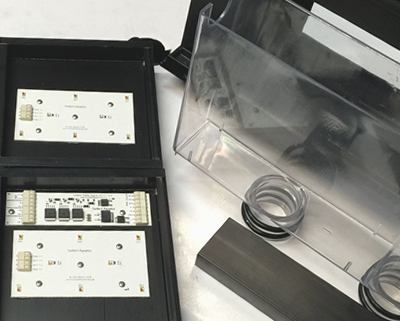

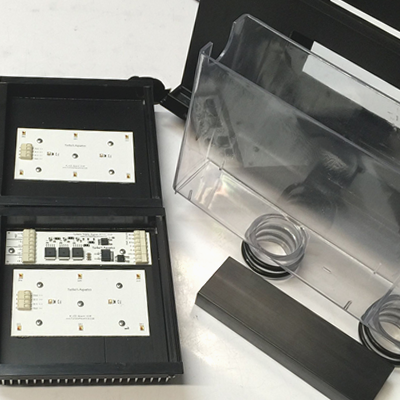

Parts list for Rev 4 Algae Scrubbers

All Rev 4 Turbo Algae Scrubbers come standard with the following components:

Main Unit, black ABS:

  • Base with J-channels bonded in place (these guide the LED fixtures)
  • End cover plates
  • Lid
  • False Bottom

Growth Chamber:

  • Clear Polycarbonate with 4 o-rings for a watertight seal into the base during operation
  • A tube of reef-safe silicone grease is also included.

Slot Pipe:

  • Black ABS with 3/4″ slip fittings on each end, built-in light/spray blockers, and screen retention pin

Growth Screen:

  • #7 mesh plastic canvas coated in mortar

Fully Assembled LED Fixtures:

  • (2) Custom black anodized heat sinks with ABS end caps & external dimming knob(s)
  • (2) LED & Driver boards
  • (1) Power supply with US wall plug

Inlet Plumbing Parts:

  • End cap for Slot Pipe
  • 3/4″ slip-to-thread adapter (straight)
  • 3/4″ slip-to-thread adapter (street elbow)
  • 3/4″ thread-to-thread union
  • 3/4″ thread-to-hose-barb adapter
  • 3/4″ Two Little Fishies ball valve
  • (6) Zip Ties for hose connections

Drain Plumbing Parts:

  • (2) 2″ to 1.5″ PVC adapters
  • (2) 12″ sections of 1.5″ PVC pipe
  • (1) bubble reducer coupling with integral flapper valve (for drain control)
  • (1) 4″ x 8″ 200 micron felt draw string filter bag

Cleaning & Maintenance Parts:

  • Denture toothbrush
  • Grout & Tile scrub brush
  • Plastic scraper and/or monogrammed Lil Chisler scraper

*Note: 24″ of 3/4″ ID Vinyl Hose is no longer included
